Product Catalog
Our Products
Comprehensive range of precision metal components and tooling solutions for
global manufacturing industries
- Filter by Category:

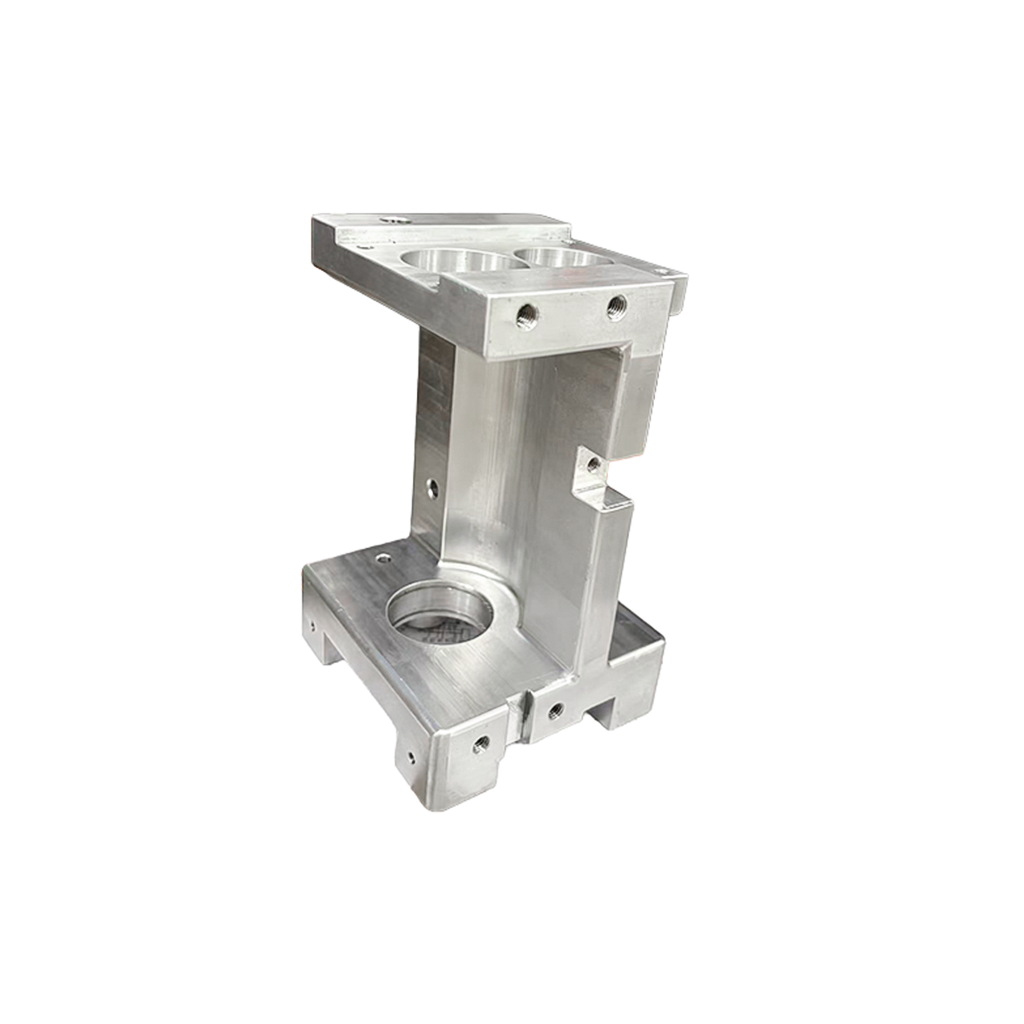

Aluminum Support Stand with Stepped Side and Counterbored Holes
Top: Dual large-hole mounting surface (accommodates both counterbored and straight-through holes), with two front threaded holes.
Middle: Vertical main support pillar connecting the top and bottom platforms.
Side: Stepped side profile with precision threaded holes.
Bottom: Robust base featuring a large central through-hole, along with positioning notches at the feet and auxiliary mounting threaded holes.
Materials: Aluminum 6061, 6063, and 7075.
Tolerance: ±0.05mm.
Machining Features: Counterbored holes, stepped surfaces, threaded holes, and side notches.
Applications: Automation brackets, robotic connectors, jigs & fixtures, and sensor mounts.
Inspection Methods: CMM (Coordinate Measuring Machine) and calipers.

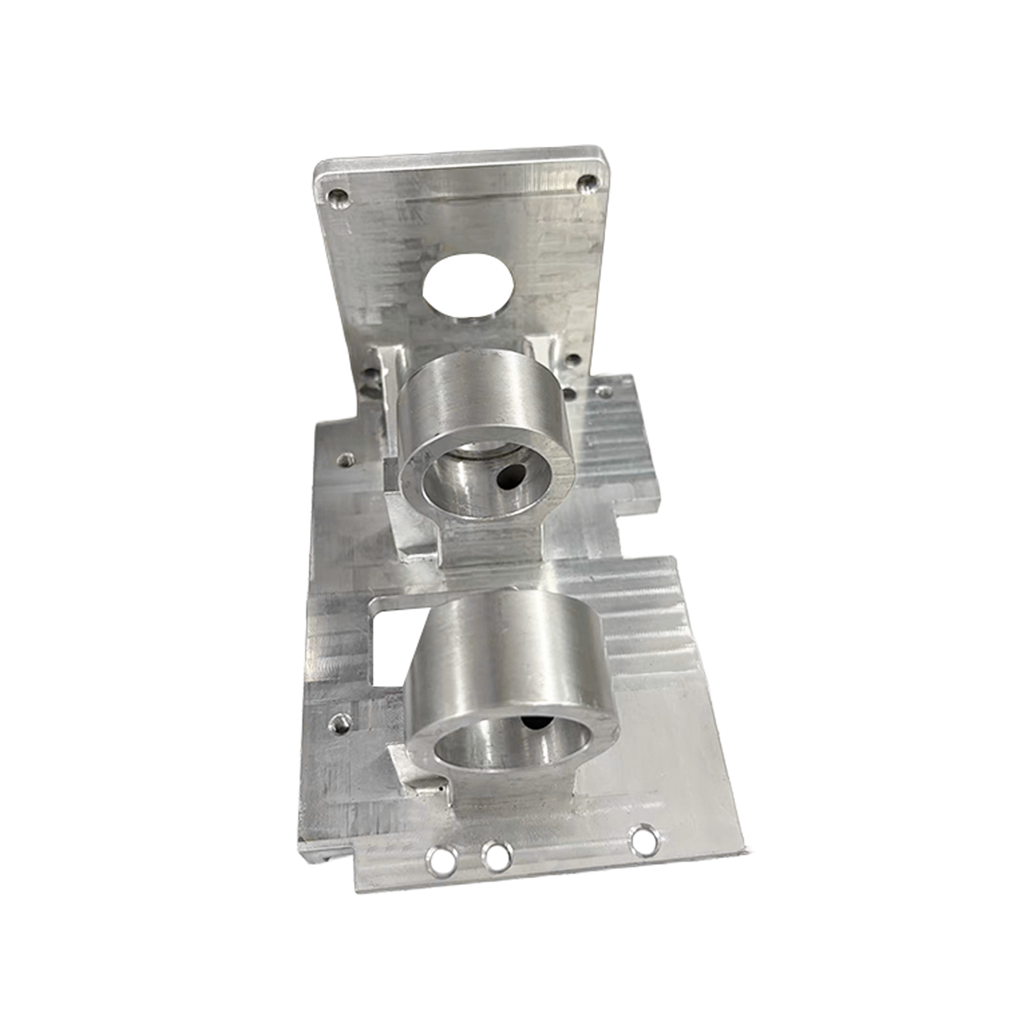

Precision Aluminum Sensor & Robotic Joint Carrier Bracket
Top/Rear: Vertical mounting plate with a large center through-hole and corner threaded mounting holes.
Middle: Dual cylindrical precision sleeves/bosses with coaxial through-holes for secure alignment and shaft mounting.
Side: Precision cross-holes (side lock holes) on the sidewall of each cylindrical sleeve for fastening internal pins or components.
Bottom: Sturdy base featuring three front countersunk/through mounting holes, a central cutout/window, and multiple auxiliary threaded holes around the perimeter for secure installation.
Materials: Aluminum 6061, 6063, and 7075.
Tolerance: ±0.05mm
Machining Features: Cylindrical boss machining, internal bore drilling/reaming, side threaded holes, counterbored holes, and milled cutouts.
Applications: Automation positioning mounts, robotic joint/sensor carrier bases, and precision fixture base plates.
Inspection Methods: CMM (Coordinate Measuring Machine), micrometers, and calipers.
Why Choose Us
Product Advantages
Why choose Woed Industrial Technology for your precision metal needs
Custom Products, No MOQ
Fully customizable products with no minimum order quantity requirements. Perfect for both prototyping and mass production.
Precision Guaranteed
Laser cutting accuracy of ±0.1mm, no secondary processing required. CNC machining precision up to ±0.01mm.
Free Drawing Modifications
Custom parts support drawing modifications up to 3 times free of charge. Our engineering team works with you to perfect the design.
Our Capabilities
State-of-the-Art Manufacturing

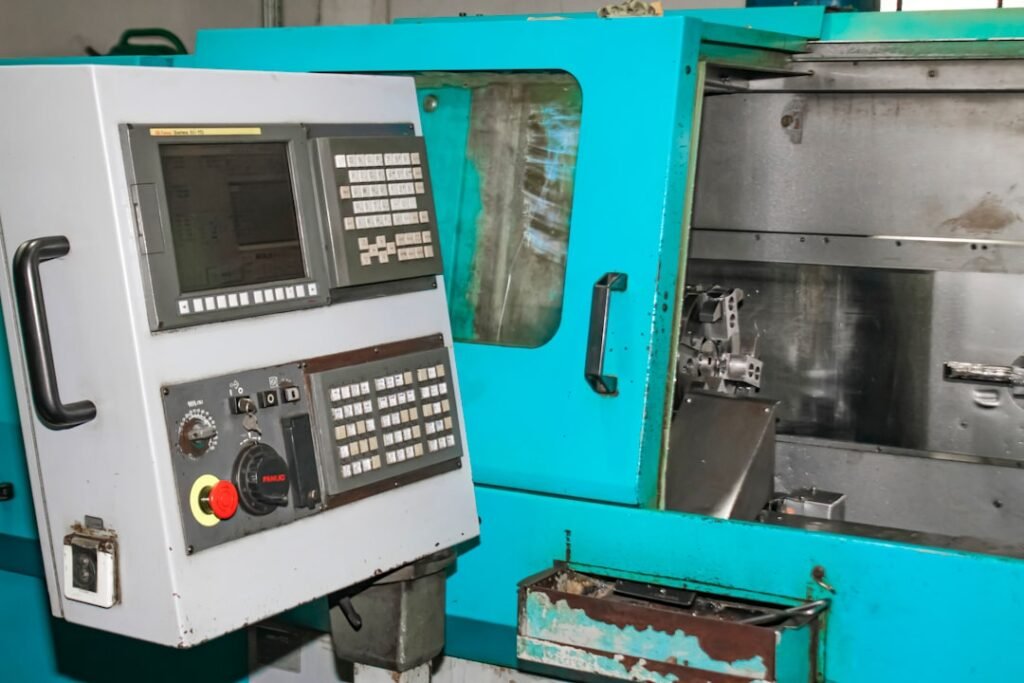

Equipped with advanced CNC machining centers, CMM inspection systems, and laser cutting equipment to deliver precision components that exceed industry standards.
±0.05mm
Ultra Precision
24/7
Production
15+
CNC Centers
ISO
Certified
Customer Support
Comprehensive After-Sales Service
Your satisfaction is our priority with comprehensive support
Quality Guarantee
- Free return/exchange for material non-compliance
- Dimensional inspection report included
- Material certification available upon request
- 100% quality inspection before shipment
Ongoing Support
- Annual maintenance visits for equipment buyers
- Technical consultation available 24/7
- Rapid response to inquiries within 24 hours
- Free design optimization recommendations
Ready to Order?
Contact our team for detailed specifications, custom quotes, or technical consultation
